solenoid proportional directional control valve hydraulic KSP08-25-0-N

Name: solenoid proportional directional control valve hydraulic KSP08250N
Brand: Kaienli
Price: 5 USD

Brand Name : Kaienli

Model Number : KSP08-25-0-N

Certification : Available

Place of Origin : China

MOQ : 1 pieces

Price : USD 5- 40 per piece (depends on the different types )

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : usually about 2 weeks, depends on which type and the quantity demand

Delivery Time : 2 or 3 weeks, depends on quantity and design

Packaging Details : Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet

Product Name : KSP08-25-0-N hydraulic solenoid valve with directional function proportional valve,proportion directional valve

Cavity hole : 3-4 16 UNF

Rated pressure : 350 bar

description : Two poDescription : Electromagnetic proportional drive, 2-way, direct acting spool type, hydraulic threaded directional valvesition two way propotional function

Valve Material : Steel

Valve Medium : Oil

Valve Type : proportional directional valve

Valve Voltage : DC12V/24V/13V/37V

Origin : China mainland

Brand : China

Contact Now

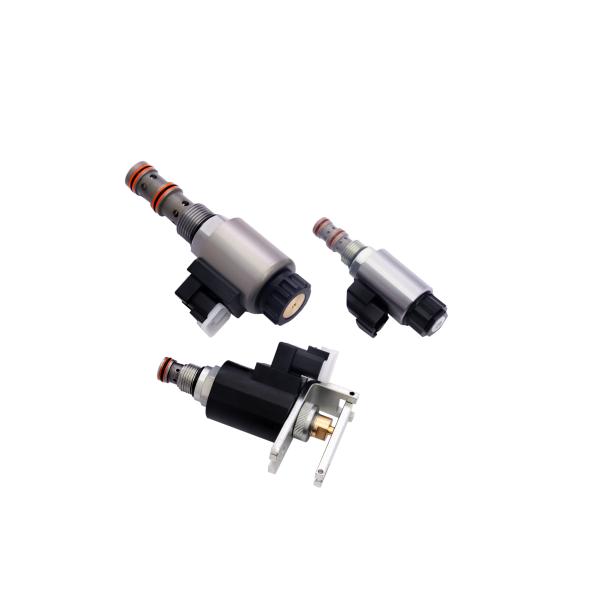

Product Pictures:

Description :

KSP08-25-0-N hydraulic solenoid valve with directional function proportional valve,proportion directional valve

Working principle:
When the power is cut off, KSP08-25-0-N fluids ① and ② are in a connected state. After being powered on, the valve core moves and the oil gradually closes as the current increases from ① to ②, achieving proportional flow control. Please note that although the oil port ① can be fully pressurized, it does not need to be used as the oil inlet of the valve. Emergency manual control option operation method: To perform emergency operation, press the button. At this position, the valve may only partially move. To ensure complete emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, please release the emergency button and the emergency device will automatically reset.

Working pressure: 250 bar
Pressure resistance: 350 bar (5075 psi)
Minimum pulse frequency: 70HZ
Flow rate: Maximum 20 L/Min, less than 82ml/Min at 210 bar (3000 psi)
Temperature range: -40 ℃ to 120 ℃, standard nitrile rubber seal
Initial current of coil at 20 ℃: Standard coil: 1.4 A at 12 VDC, E-type coil: 12 VDC
1.4A; 0.7A at 24 VDC. Maximum power of coil: 17.8W
Medium: Mineral oil with a viscosity between 7.4 to 420cSt (50 to 2000ssu) or synthetic oil with lubricating properties
Valve hole: VC08-2

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Product technical data:

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Product real pictures :

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Company Exhibitions:

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Our Certificate:

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Product processing procedures:

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Our new factory and workshop :

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Our warehouse:

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Shipment:

solenoid proportional directional control valve hydraulic KSP08-25-0-N

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block

Welcome your visit and inquiry !
