Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Name: Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve
Brand: Kaienli
Price: 3 USD

Brand Name : Kaienli

Model Number : KPR58-38A-0-N

Certification : Available

Place of Origin : China

MOQ : 1 pieces

Price : USD 3-42 per piece (depends on the different types )

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : usually about 2 weeks, depends on which type and the quantity demand

Delivery Time : 2 or 3 weeks, depends on quantity and design

Packaging Details : Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet

Product Name : KPR58-38A-0-N Pressure reducing valve with cavity hole VC08-3 standard hydrualic pressure reduce valve

Cavity : VC08-3

Rated pressure : 390 bar (5700 psi)

Rated flow : 18 lpm max

Valve Material : Steel

Origin : China

Brand : Kaienli

Valve type : pressure release valve

Temperature : -40℃～120℃ (standard nitrile rubber seal) Filtration: within NAS level 9

Warranty : one year

Production time : depends on the quantity

Packing : standard packing or as per your request

Contact Now

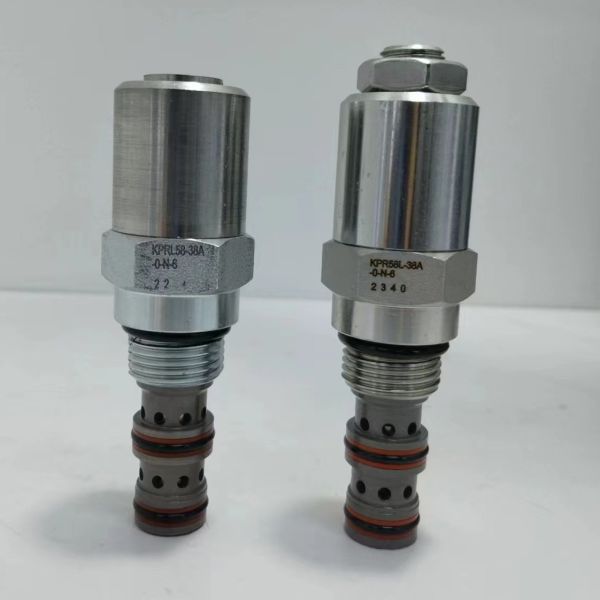

Product Pictures:

KPR58-38A-0-N Pressure reducing valve with cavity hole VC08-3 standard hydrualic pressure reduce valve

Working Principle:
KPR58-38A type, under steady state, allows oil to flow in both directions ② and ①, while the spring chamber remains at the oil port ③ to drain oil. When the pressure at ① reaches the preset value of the valve, the valve core moves to limit the oil inflow at ②, thereby regulating the pressure at ①. In this mode, when the pressure at ① exceeds the pressure reduction set value, oil can also be drained from ① to ③. There is no noise in the decompression and overflow state.

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Product technical data:

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Product real pictures :

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

PTC Exhibition:

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Company Exhibitions:

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Our Certificate:

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Product processing procedures:

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Our new factory and workshop :

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Our warehouse:

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Shipment:

Hydrualic Pressure Reducing Valve 390 Bar Safety Pressure Relief Valve

Type 1	soloenid valve
Type 2	manual cartridge valve
Type 3	2 way 2 position solenoid valve
Type 4	2 way 6 position solenoid valve
Type 5	2 way 8 position solenoid valve
Type 6	Pilot oil resource valve
Type 7	explosion proof valve
Type 8	balance valve
Type 9	check valve
Type 10	Hydraulic lock
Type 11	Valve manifolds
Type 12	valve block

Welcome your visit and inquiry !
